CXRacing R154 Transmission Mounts for 2012-2015 Subaru BRZ/ Scion FRS Swap

Comes with R154 Transmission Mounts ONLY, Nothign Else.

Part (s) Being Sold Has One or More Registered Patent(s)

Application:
-Chassis : 2012-2015 Scion FR-S / Subaru BRZ
-Motor : Toyota 2JZ-GTE
-Transmission: R154 Manual

Note:
1. No Installation Instruction Is Provided. But We Show Many Installed Pictures on This Item and Installation Notes. It Is Very Intuitive.
2. Due to Limited Engine and Transmission Tunnel Space, These Modifications Are Required (See Installed Pictures):
-Factory Transmission Mount Panel Needs to Be Removed and Flatten.
-Front Hood Latch Support Bar Needs to Be Cut and Replaced with Our New Aluminum Bar (to Clear Front Pulley Room).
-Factory Heater Tubes on the Firewall Need to be Remove.

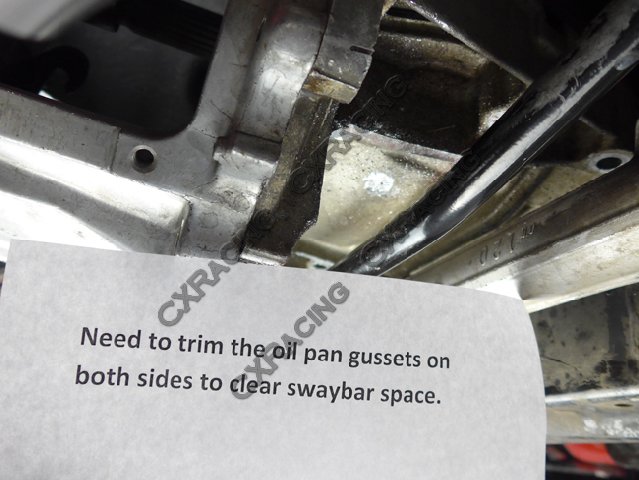

-Stock 2JZGTE Oil Pan Gussets on Both Sides Need to Be Trimmed (to Clear Space for Swaybar)
Make Sure You Understand These Modification Requirements, Do NOT Buy This Kit If You Don't Want to Do These Mods.
3. This Is A Proprietary Design By CXRacing, Matches CXRacing's Engine Mount. If You Use Different Engine Mount, Fitment Might Be Off.

Product Being Sold:

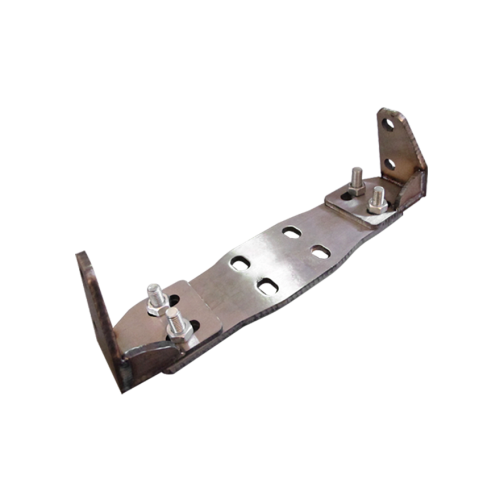

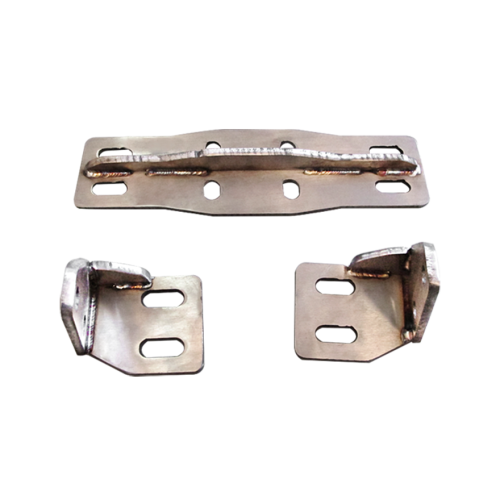

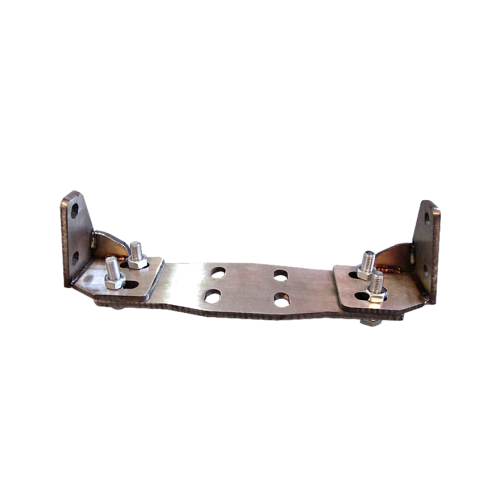

Transmission Mounts ONLY
This is CXRacing's Newest Products for the Application Stated Above. All Parts Are Developed from Ground Up in Our R&D Center in USA, Designed and Built for Improved Performance Gains, with Excellent Fitment and Easy Installation.

Product Info and Spec:
Motor / Transmission Mounts:
-Heavy Duty 7 Gauge (0.18") Thick Stainless Steel Panel, with Brace Offers Strong Support
-Adjustable Slotted Bolt Holes
-Polyurethane Bushing Mounts
-Patented Design of Motor Mount is Billet Stainless Steel, Excellent Strength

Notes:
-Off Road or Track Use ONLY, NOT for Street Use.
-Due to the Complexity of Converting a Motor from NA to Turbo, Please Make Sure You Understand the Application Stated Here is the Right Parts for Your Project.
　

　
　

　

　
　
　
Highlights:
-Especially Designed, Made for the Application Stated
-Fully Tested, Simple Easy Installation
-Offers Excellent Performance Gains
-One of the Best Kits on the Market, with High Quality Products and Affordable Pricing
　
Item(s) Included:
-Transmission Mounts Only
-Note: All Other Parts Shown On Installed Pictures Are NOT Included.
　
Below Are Installation Pictures:
　

　
　

　

　

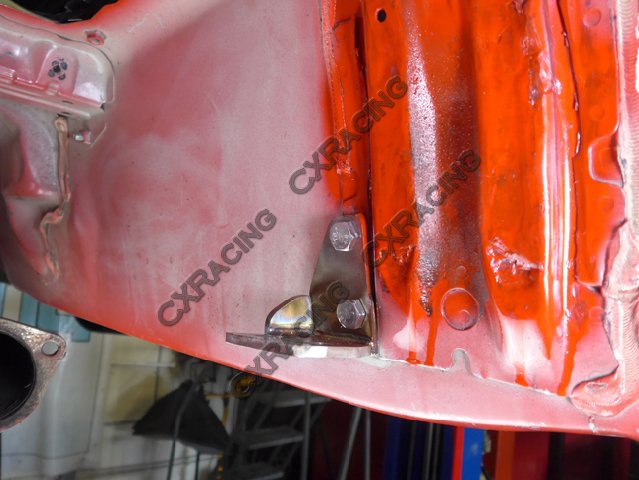

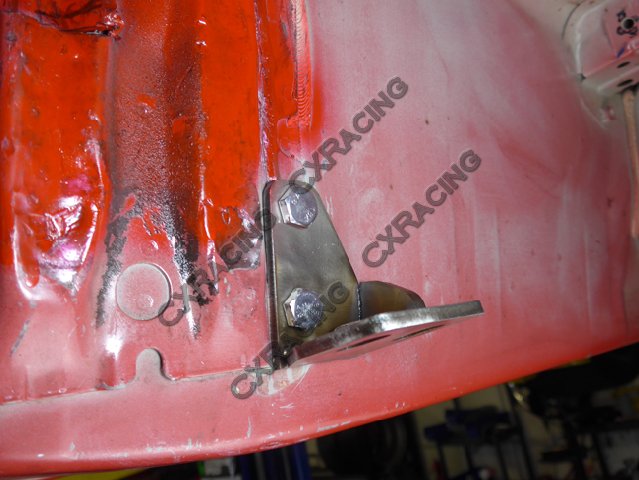

Engine/Transmission Mounts Installed Pictures:

Factory Transmission Mount Panels Need to Be Removed and Flatten:

　

　

　

　

　

　
　

　

　

　

　
　

Write a review

Please login or register to review

R154 Transmission Mounts Kit For Subaru BRZ Scion FRS Swap

  • Brand: CXRacing
  • Product Code: TM-R154-BRZ
  • Availability: In Stock

  • $200.00


0 reviews / Write a review
