CXRacing Twin Turbo Kit for 1986-1992 Toyota Supra MK3 with GM LS1/LSx Motor Swap

Supports 800-900 WHP (Motor Needs to Be Built to Be Able to Handle this Big Power, Upgraded Fuel System is Also Needed, Not Part of This Kit)

Part (s) Being Sold Has One or More Registered Patent(s)

Application:
- Chassis: 1986-1992 Toyota Supra MK3
- Motor: LS1/LSx Swap

Product Being Sold:
Turbo + Manifold + Downpipe + Wastegate + Intercooler Kit + Oil Line Kit

This is CXRacing's Newest Products for the Application Stated Above. All Parts Are Developed from Ground Up in Our R&D Center in USA, Designed and Built for Improved Performance Gains, with Excellent Fitment and Easy Installation.

Note:
Radiator and Pipe Shown Are NOT Included, Engine/Transmission Mount Kit, Catback and Y Pipe are NOT Included.

This Product was developed based on US model Left-Hand-Drive chassis. For Right-Hand-Drive, due to potential conflict with steering shaft, fitment most likely will be an issue and we don’t guarantee fitment. Modification is needed and we won’t accept return due to Right-Hand-Drive fitment issues.


Product Info and Spec:

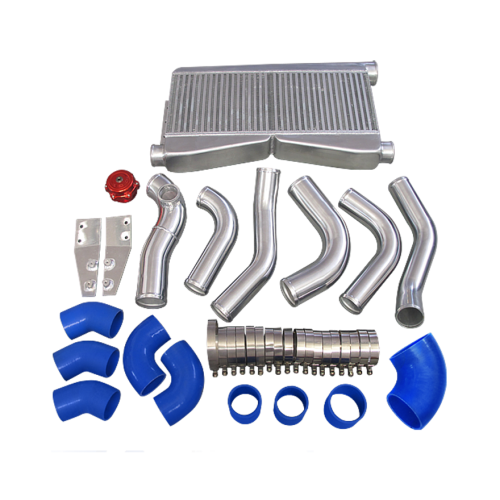

Intercooler:
- Two-In-One-Out Twin Turbo Intercooler
- Core Size: 24"X10"X3.5"
- Overall Size: 27"x16.5"x3.5"
- Two 2.5" Inlet, One 3" Outlet
- 3.5" Thickness Core, Bar and Plate Design
- 100% Aluminum

Piping Kit:
- Mandrel Bent Aluminum Pipe
- 2.5" Cold Side and 3" Hotside Pipes
- Comes with 50mm BOV, Silicon Hoses, and T-Bolt Clamps

Turbo and Wastegate:
- 4" Air Inlet, 2.5" Compressed Air Outlet
- Standard T4 Turbine Housing Flange
- 3" Vband Exhaust Outlet
- Journal Bearing
- Oil and Water Cooled
- 6-25 PSI Working Pressure
- .70 A/R Compressor
- .68 A/R Turbine
- 44mm Wastegate 8 PSI

Manifolds:
- Twin Turbo Manifold for LS1 Swap on 86-92 Supra MK3
- 3" Vband with 44mm WG Flange

Downpipe:
- Dual 3" Stainless Downpipe
- Ends Around Transmission Area (The Rest of the Exhaust System is NOT Included)

Notes:
- Off Road or Track Use ONLY, NOT for Street Use.
- Due to the Complexity of Swapping a Motor to Different Chassis, Please Make Sure that You Understand the Application Stated Here are the Right Parts for Your Project.
- Parts Being Sold are the Kit Being Advertised ONLY. Other Parts Shown on Pictures are for Demo Only (of Our Complete Swap Kit). Check Our Other Website Items.



Highlights:
- Especially Designed, Made for the Application Stated
- Fully Tested, Simple Easy Installation
- Offers Excellent Performance Gains
- One of the Best Kits on the Market, with High Quality Products and Affordable Pricing

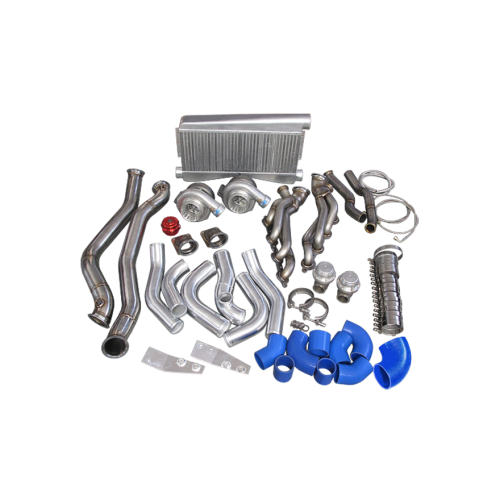

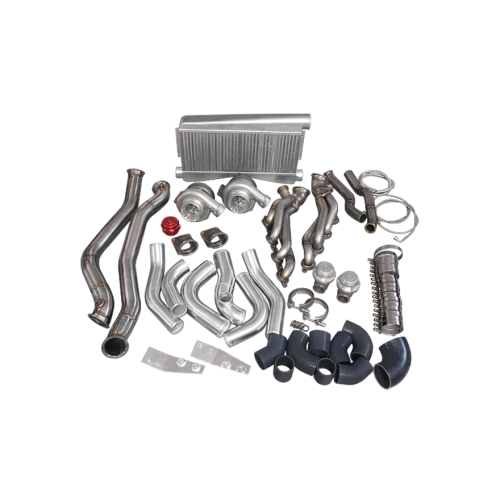

Items_Included:
- T4 GT35 Turbo x2
- 44mm Wastegate x2 with Dump Pipes
- Bar & Plate Intercooler, With Mounting Brackets
- Aluminum Piping Kit with Hoses, Clamps, and BOV
- Twin Turbo Manifold (2 Pcs)
- Cast Turbo Elbow Adapter x2
- Downpipe
- Oil Line Kit

Note: Radiator and Pipe Shown Are NOT Included, Engine/Transmission Mount Kit, Catback and Y Pipe are NOT Included.

Below Are Installation Pictures:
