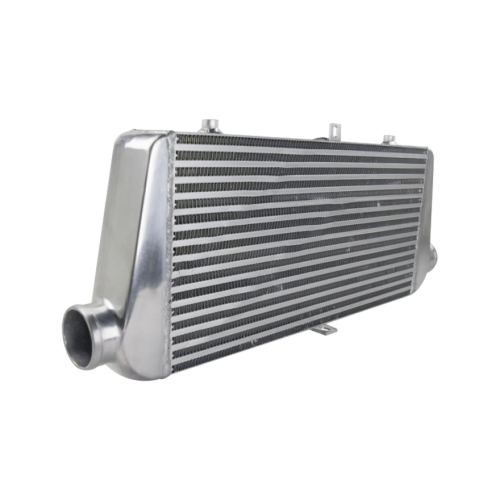

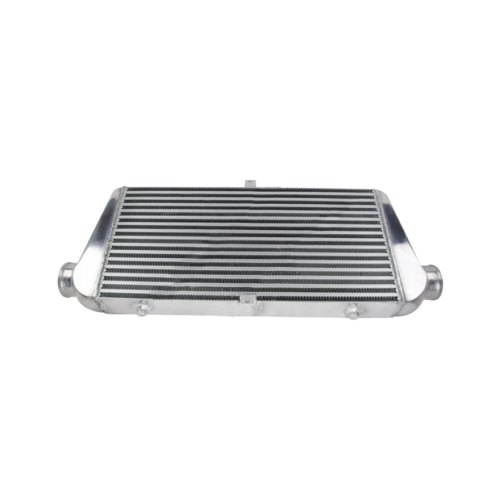

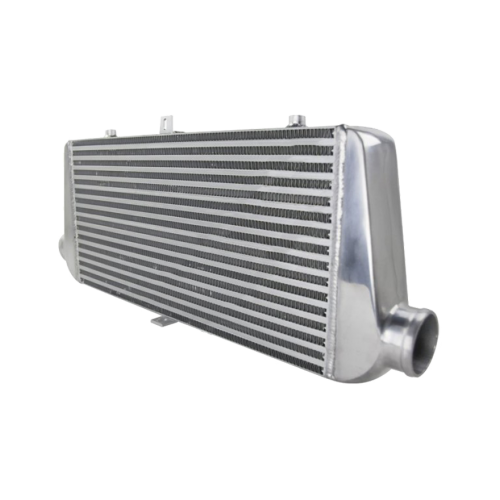

CXRacing Universal Intercooler
　
30x11x3 Inch Overall Size, 3" Thickness Core, 2.75" Inlet/Outlet
　
CXRacing's intercoolers are made with high quality aluminum materials and are designed to offer the best performance results yet still maintaining low competitive prices. Our intercooler are fully tested using superflow's industry leading SF1020 flowbench. Our turbo kits using the same intercoolers are also tested with superflow's SF-Powermark engine dynamometer.

Our intercoolers are fully tested and track proven. See below for photos and video of the flowbench test.

Note:
Our flowbench tests are done with industry standard at 28 inch of H2O and also higher pressure. Intercoolers are normally used for boosted applications which flow at higher flow rates. However, many intercooler manufacturers/sellers list flowrates that inaccurate and stating a flow rate without even indicating the test pressure is misleading.
　
Product Info and Spec:
(Measurements and Results Have +/- 2% Tolerance)
Construction:

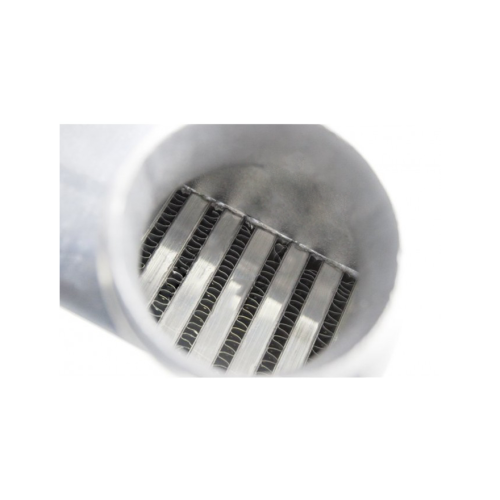

Bar & Plate
Core Size:
23"x11"x3"
Overall Size:
30"x11"x3"
Inlet Size:
2.75"
Outlet Size:
2.75"

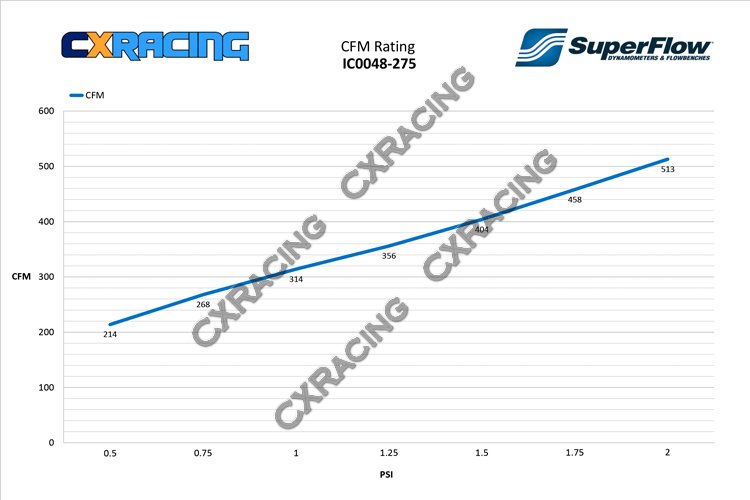

Flow Rate @ 28InH2O (1 PSI):
315 CFM
Flow Rate @ 50InH2O (~2 PSI):
514 CFM
HP Rating:
500 HP
　
　
Note:
- Off road or track use ONLY, not for Street use.
- Due to the complexity of a turbo/supercharger motor, or swapping a motor to a different chassis, please make sure that you understand the application stated here are the right parts for your poject.
- Part(s) being sold is what is being advertised ONLY. Other parts shown on installed pictures are for demo only (of our complete kit).
　
　

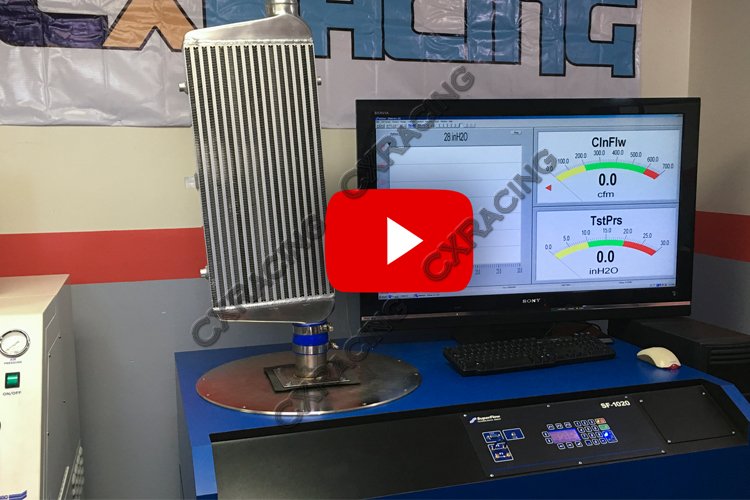

Click Below Picture to See Flowbench Test:
　
　
　
　
　
　
Item(s) Included: Intercooler x1
　

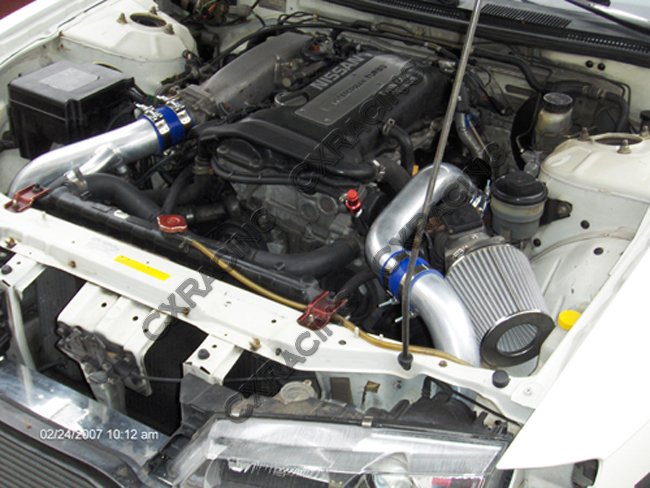

Below Are Examples of Cars/Applications Using This Intercooler:
　

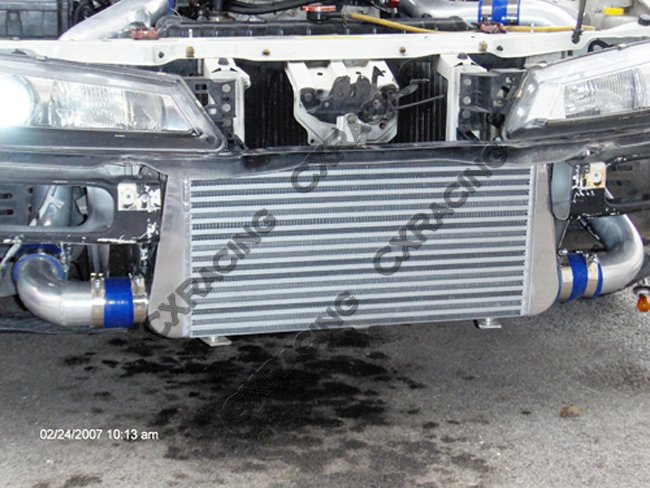

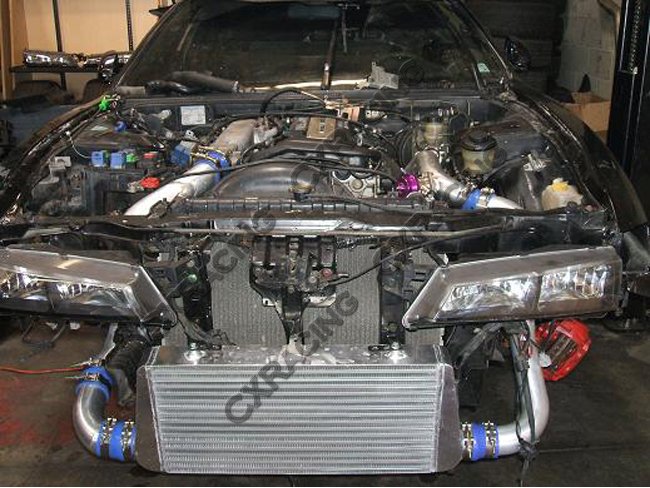

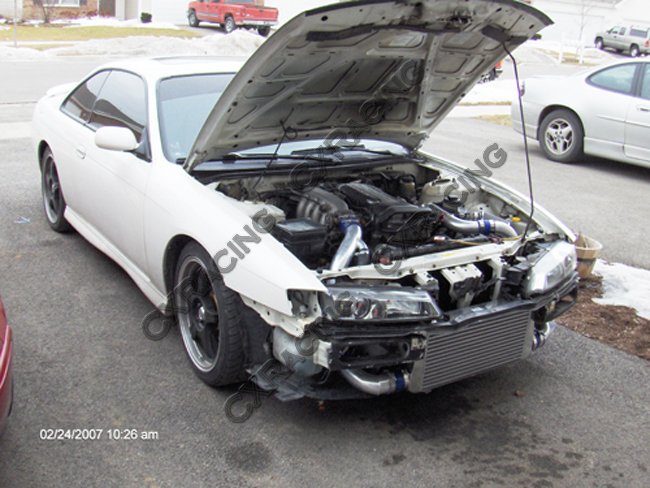

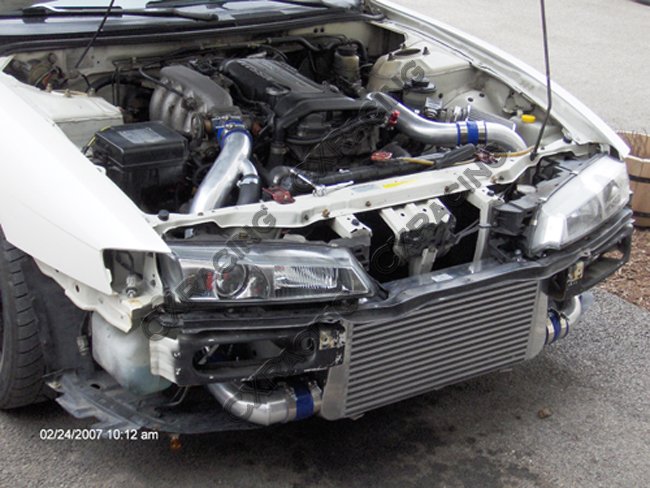

For 89-99 Nissan 240SX S13 S14 or S15 Chassis with S14 SR20DET Engine Swap
　
　
　
　
　
　

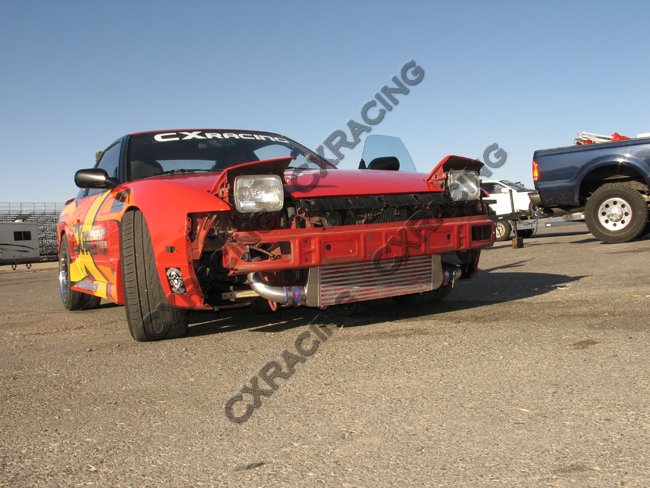

For 89-99 Nissan 240SX S13 Chassis with S13 SR20DET Swap
　
　
　
　
　

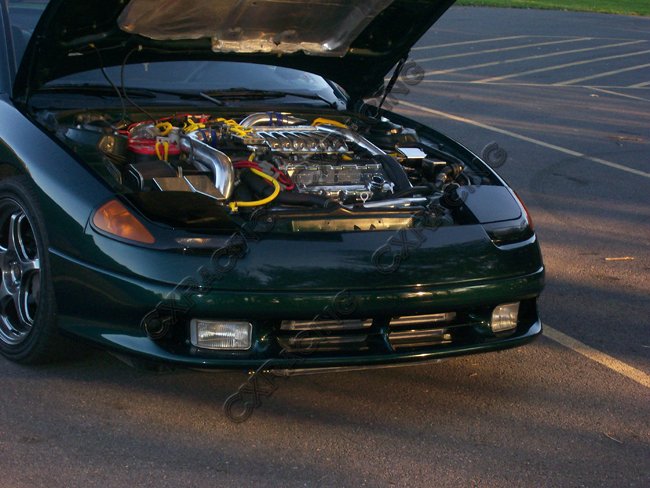

For Mitsubishi 3000 GT VR-4 & Dodge Stealth TT
　
