CXRacing 2JZ-GTE Engine Swap Front Mount Intercooler Piping Kit + Radiator Pipe + Air Intake Pipe Tube Kit For BMW E36 with 2JZ-GTE VVTI Swap, Stock Twin Turbo

Application:
Chassis: BMW E36
Motor: JDM Toyota 2JZ-GTE VVTI
Turbo: Stock 2JZGTE Twin Turbo

Product Being Sold:
Front Mount Intercooler + Piping Kit + BOV + Radiator Pipes + 3" Stock Turbo Intake Pipe + 3" Air Filter

This is CXRacing's Newest Products for the Application Stated Above. All Parts Are Developed from Ground Up in Our R&D Center in USA, Designed and Built for Improved Performance Gains, with Excellent Fitment and Easy Installation.

Product Info and Spec:
Intercooler：
Bar & Plate Construction
Core Size: 20"x12"x3"
Overall Size: 27"x12"x3"
3" Thick Core, 2.5" Inlet & Outlet
Comes with Mounting Brackets

Piping Kit:
Mandrel Bent Aluminum Pipe
Comes with BOV, Silicon Hoses, and T-Bolt Clamps
Fits Stock 2JZGTE Twin Turbo and Stock Intake Manifold

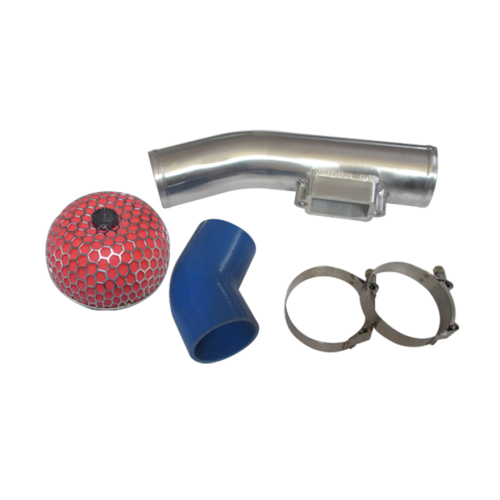

Turbo Intake Kit:

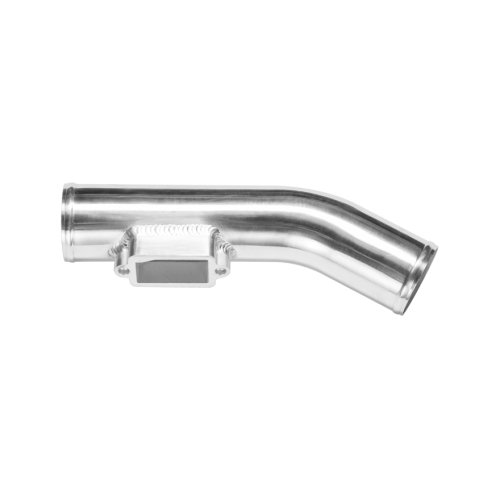

3" Aluminum Intake Pipe
3" Air Filter
Comes with MAF Sensor Flange that Fits Factory MAF Sensor

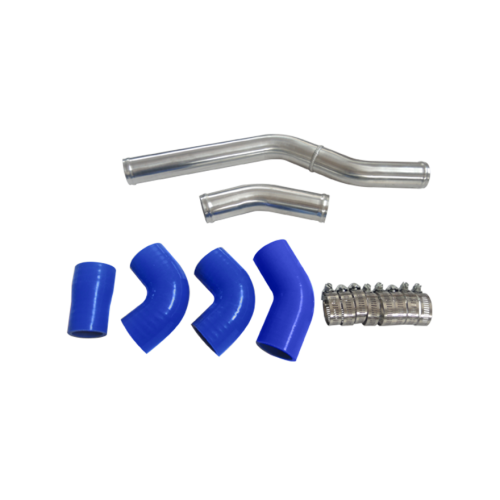

Radiator Pipe:
1.5" Aluminum Water Pipes, Top and Bottom, with Silicon Hoses and Clamps

Note:
Off Road or Track Use ONLY, NOT for Street Use
Due to the Complexity of Swapping a Motor to Different Chassis, Please Make Sure that You Understand the Application Stated Here are the Right Parts for Your Project
Parts Being Sold are the Kit Being Advertised ONLY. Other Parts Shown on Pictures are for Demo Only (of Our Complete Swap Kit). Check Our Website
To Level Motor Properly, See Below Installed Picture of the Mounting Plate Direction
         Click Below Picture to See Flowbench Test:


Highlights:
Especially Designed, Made for the Application Stated
Fully Tested, Simple Easy Installation
Offers Excellent Performance Gains
One of the Best Kits on the Market, with High Quality Products and Affordable Pricing

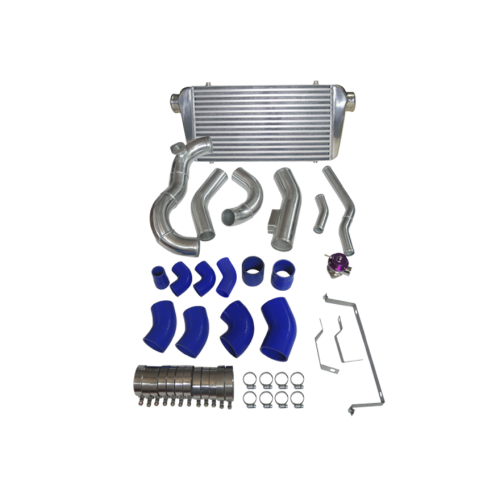

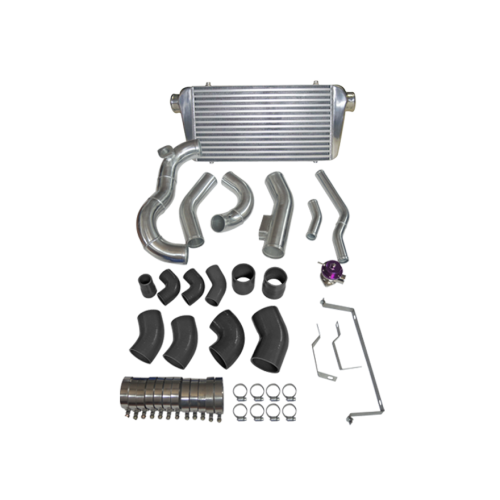

Items Included:
Intercooler + Bracket
Aluminum Pipes
Radiator Pipes
Silicon Hoses and Stainless Steel T-Clamps
BOV
Air Intake Pipe + Air Filter

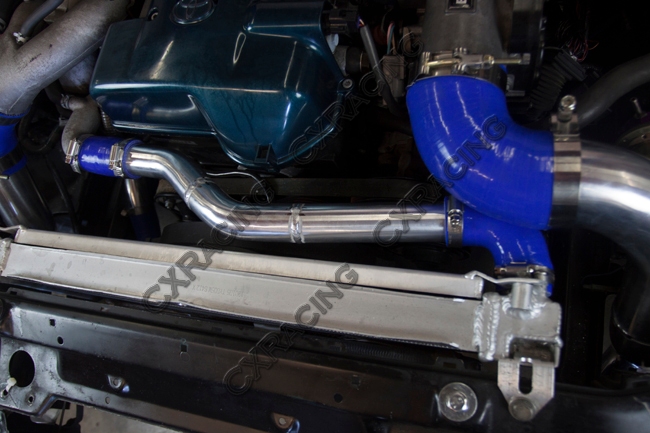

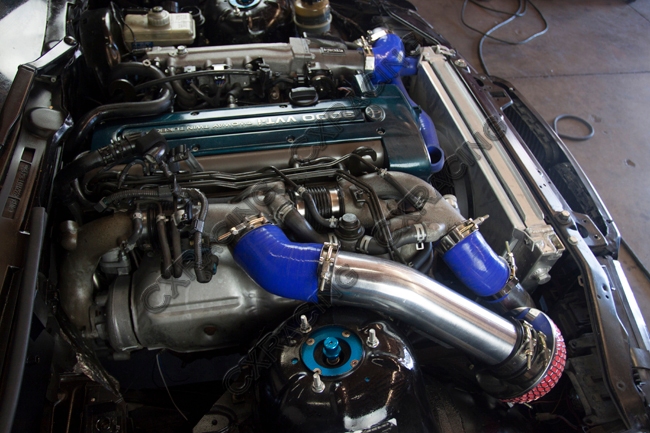

Below Are Installation Pictures:
