CXRacing Intercooler + Piping Pipe Tube Kit For 05-07 Mazdaspeed6 2.3L Turbo

BOLT ON FITMENT, No Any Other Modification

Replace Top Mount Intercooler to Front Mount, Good for 400 HP

Intercooler + Piping + BOV + Silicon Hose + T-Clamp + Bracket:

Comes with Aftermarket BOV, Re-circulated to Keep Optimized Factory ECU Tuning

Unlike Other Kit that Has Very Long Piping Route that Causes Very Larger Boost Pressure Drop, CXRacing's Kit is Designed with Short Route Run, Highly Efficient, with Almost No Pressure Drop Difference Compare to Stock Top Mount IC When Running Stock Boost

This Kit is Excellent for Performance Gain and Better Cooling for MS6. It is a Complete New Design from Ground Up, Comes with Aluminum and Stainless Brackets. 4 Stainless Steel Brackets Hold the Intercooler Securely, Attached to a Polished Aluminum Bracket on the Top. Professional Nice Looking

Note:

1. This Kit Needs to Remove or Relocate Factory Windshield Reservoir Tank

2. Front Bumper and under Guard Panel Need to be Trimmed

3. Keeps Crash Bar, No Need to Modify

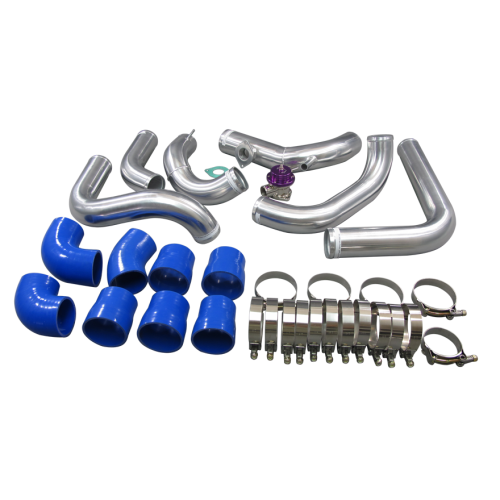

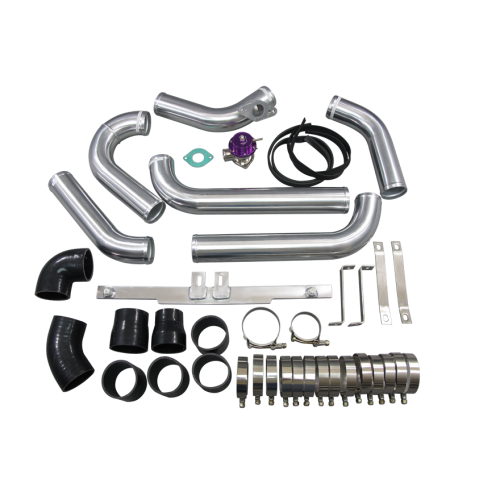

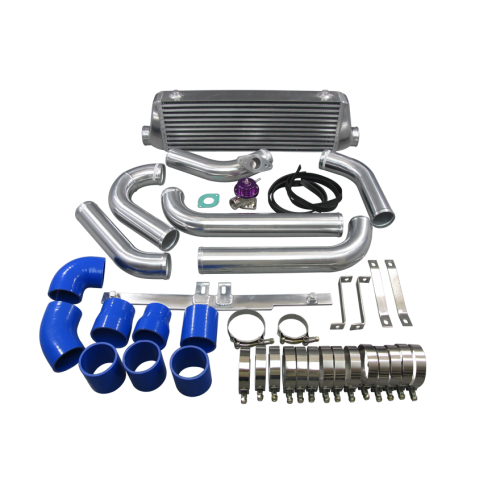

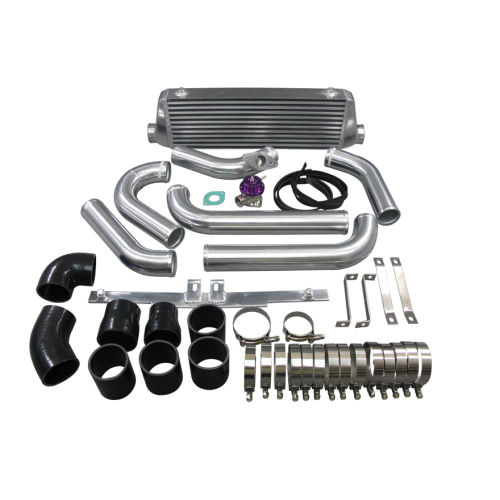

PRODUCT(S):
- 1x Aluminum Intercooler with Mounting Brackets
- 1x Aluminum Piping Kit
- 1x Set of Silicon Hose (Blue or Black)
- 1x Set of T-bolt Clamp
- 1x Blow Off Valve

Application(s):
- Chassis: 05-07 Mazdaspeed6 2.3L Turbo

Product Info and Spec:
Intercooler:
Bar & Plate Intercooler, 21.5"x7.25"x2.5" Core Size, 27.5"x7.25"x2.5" Overall Size, 2.5" Thickness Core, 2.5" Inlet/Outlet

Piping Kit:
Mandrel Bent Aluminum Pipe, Comes with BOV, Silicon Hoses and T-Bolt Clamps

Installed Photos:
