CXRacing Front Mount Intercooler + Piping Pipe Tube Kit + Turbo Intake and Air Filter Kit For 2015-2021 Subaru WRX with FA20DIT Engine (New WRX with Turbo In the Front, Not Older WRX with Turbo In the Back)

Intercooler + Piping + Hoses + Clamps + BOV + Brackets + Intake Pipe + Air Filter + Coolant Tank

Replaces Stock Intercooler, Piping, Turbo Intake Box

Bolt On Fitment for the Intercooler, Comes with Mounting Brackets

Much Larger Intercooler Than Stock Intercooler, 23"x11"x3" Core

2.75" Aluminum Piping Kit with BOV

BOV Re-circulates Back to Turbo Intake

Note :
- This Kit Needs To Replace Stock Radiator Coolant Tank, With Our Coolant Tank.
- There Are A Few Different Combination of the Kits We Offer For the Same 2015-2021 WRX. This Kit Is for Front Mount Intercooler, Piping Kit, and Also Turbo Intake Kit.
- Need to Trim the Front Bottom Plastic Cover A Little Bit to Fit the Piping, See Below Installed Pictures

Application(s):
- Chassis: 2015-2021 Subaru WRX
- Motor: FA20DIT
- Turbo: Stock Turbo
No Installation Instruction Is Provided. But We Show Many Installed Pictures on This Item and Installation Notes. It Is Very Intuitive

PRODUCT(S):

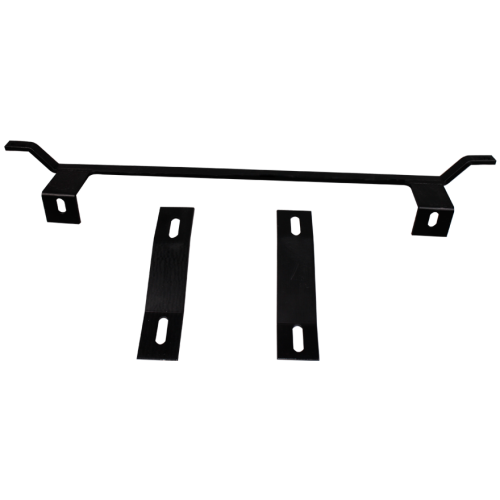

- 1x Aluminum Intercooler, With Mounting Brackets
- 1x Aluminum Piping Kit
- 1x Set of Silicon Hose (Black)
- 1x Set of T-bolt Clamp
- 1x Blow Off Valve
- 1x Coolant Tank
- 1x Air Filter

Technical Specifications:

- Intercooler: Bar & Plate Intercooler, 23"x11"x3" Core Size, 30"x11"x3" Overall Size, 3" Thickness Core, 2.75" Inlet/Outlet

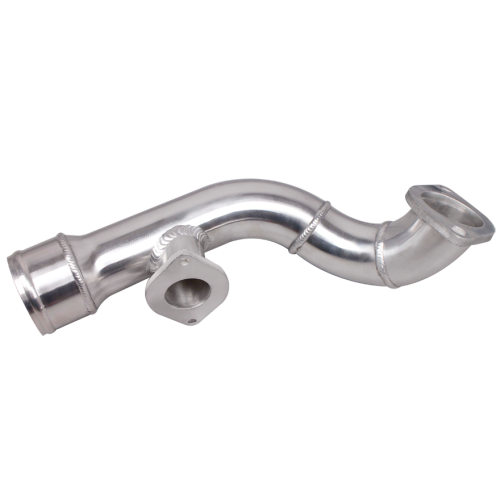

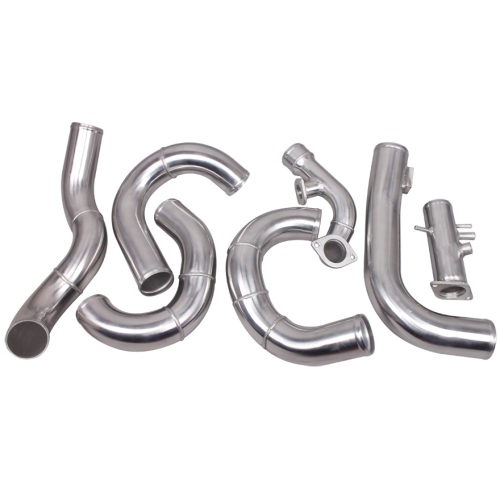

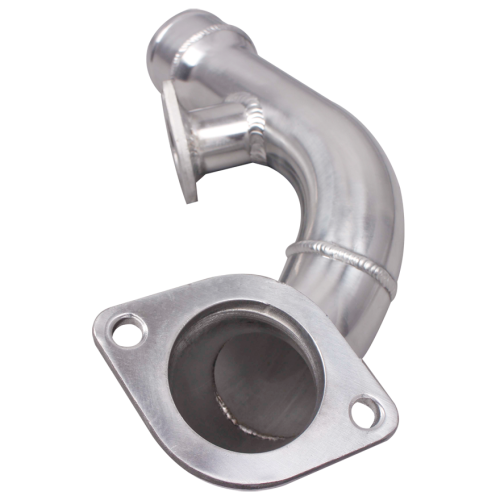

- Piping Kit: Mandrel Bent Aluminum Pipe, 2.5" Pipe Connects to Turbo and The Rest Are 2.75" Pipe, Matches All Stock Vacuum, BOV Re-Circulation Provisions. Fits All Stock Connections

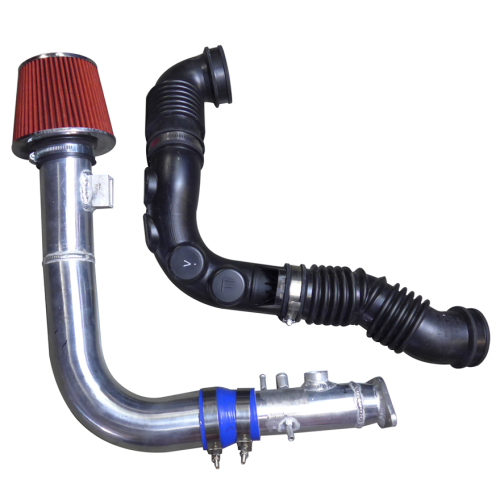

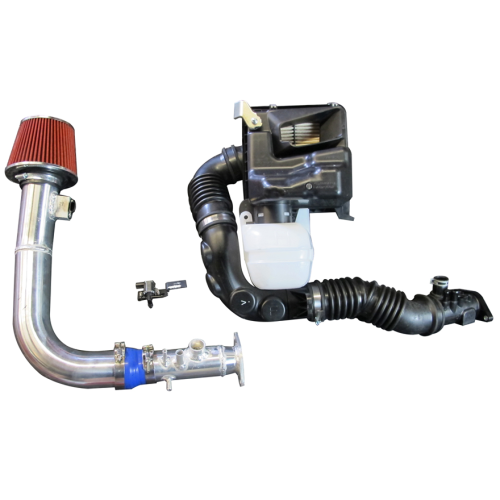

- Turbo Intake Kit: 2.5" Pipe Connects to Turbo and 3" Pipe Connects to Air Filter, Fits Stock Air Meter Sensor, 3" Air Filter

Installed Photos:
