CXRacing Chromoly Cylinder Head Stud Kit + Crank Bolt / Harmonic Balancer Bolt for 2005+ GM/Chevy Gen IV LSx 6.0/6.2L Engine

Note: This Stud Kit ONLT Fits Gen IV LSx 6.0L and 6.2L Engines. Does NOT Fit Others!

Features:

- 220,000 PSI Strength

- 12 Point Nuts, with Washers

- Black Oxide Finish

- Comes with:

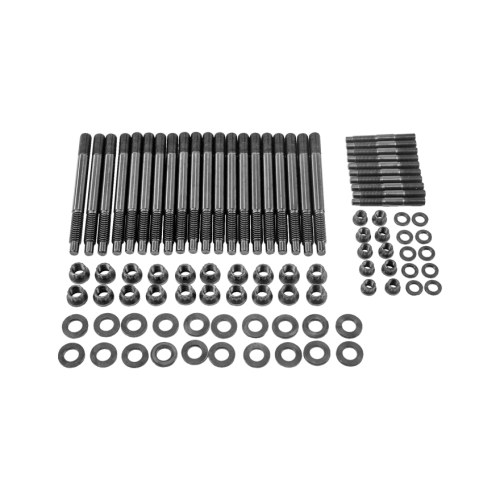

M11 x 130mm Stud x 20 pcs
M8 x 64mm Stud x 10 pcs

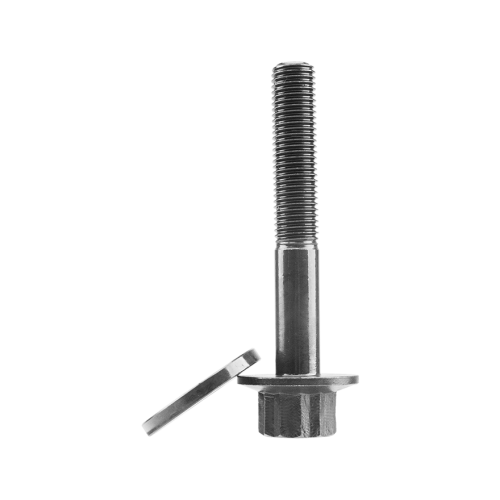

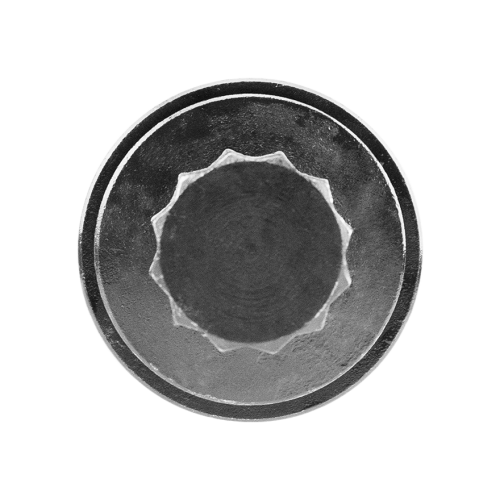

Crank Bolt and Washer x 1 pcs

These Cylinder Head Studs Are Made With High Quality Chromoly Steel, Hold Extreme Strength for High Power Engine Builts, Such As Boosted Applications.

Recommended Torque Spec:

1. First Pass All M11 Bolts in Sequence: 22 lb/ft

2. Second Pass All M11 Bolts in Sequence: 90 degrees, 50 lb/ft

3. Final Pass All M11 Bolts in Sequence (Excluding the Bolts at the Front and Rear of Each Cylinder): 90 degrees, 75 lb/ft

4. Final Pass M11 Bolts at the Front and Rear of Each Cylinder Head in Sequence: 70 degrees, 75 lb/ft

5. M8 Inner Bolts in Sequence: 22 lb/ft

What's in the box?:
 This Item is for the Stud Bolt Kit and Crank Bolt / Harmonic Balancer Bolt ONLY, All Other Parts Shown are NOT INCLUDED.

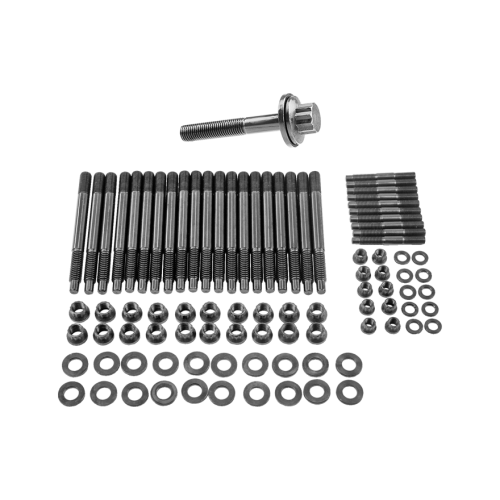

Product(s):
- 20x M11 Studs
- 10x M8 Studs
- 30x Nuts and Washers
- 1x Bolt + Washer


Installed Photos:

























Write a review

Please login or register to review

Head Stud Bolt Kit + Crank Crankshaft Bolt for GM Chevy GEN IV LS9 LQ9 6.0L 6.2L Engine

  • Brand: CXRacing
  • Product Code: BOLT-KIT-LQ9-CRANK
  • Availability: In Stock

  • $77.27


0 reviews / Write a review
