CXRacing Turbo + Intercooler Kit for 12th Gen 2009-2010 Ford F150 5.4L V8 NA-T.

Does NOT Fit 2011+ 5.0 Engine.

This Kit Is Developed Based on a 4x4 Chassis, It Should Fit the RWD As Well.

This Is Our Innovated Design for F150, No Cut, Bolt On Fitment and Makes Big Power.

- T76 Big Turbo, Supports 600 HP
- 60mm Vband Wastegate
- 3" Turbo Downpipe
- 2.5" Header Cross Pipe
- 50mm BOV

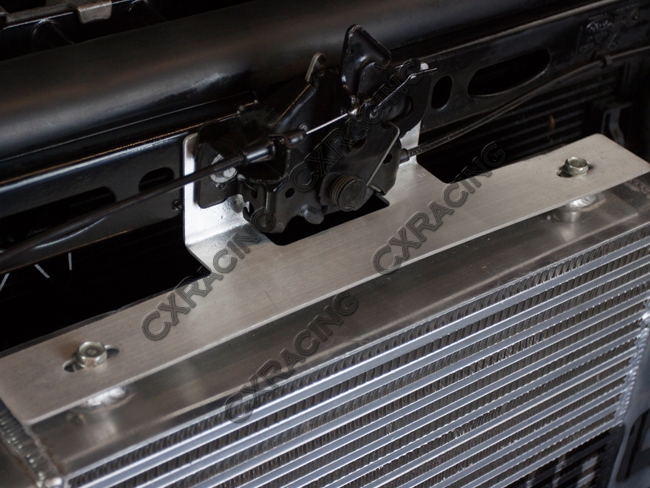

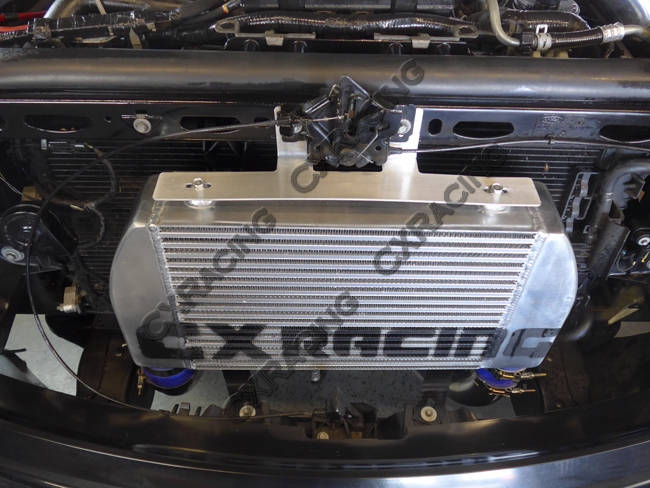

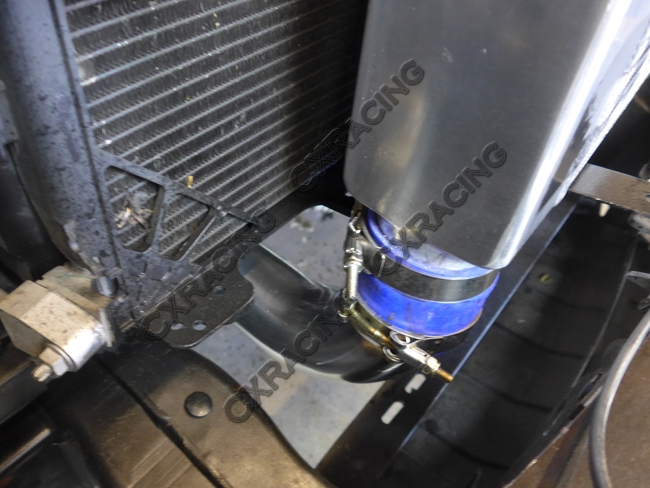

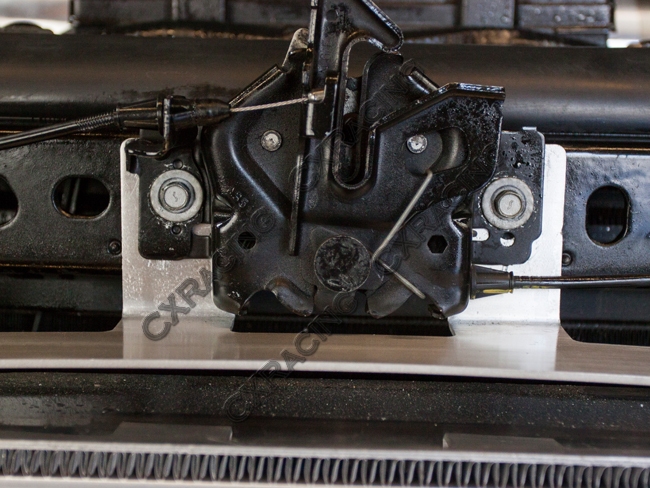

- Bolt On Fitment, Comes with Brackets to Mount Intercooler
- Big 4" Core Intercooler
- 3" Intercooler Piping Kit

Keeps All Stock Parts, A/C etc

Notes:
1. Due to Very Tight Space On the Passenger Side, It Is Highly Recommended to Do the Following for Easier Installation:

a. Remove the Wheel On Passenger Side.
b. Loose the Engine Mount Bolts and Lift the Engine Up About 3-4".
c. Cut Factory Stock Stud to Remove Existing Header.
d. For Turbo Oil Drain:

Option #1: Drill A Return Hole on the Oil Pan and Connect It with Oil Return Fitting.

Option #2: Drill A Return Hole on the Valve Cover (As Pictured), But MAKE SURE to Add Proper Breather System (Not Included) to the Valve Cover. Otherwise Back Oil Pressure Will Damage The Engine.

e. Extends the MAP Senor Wires from Stock Location to Here (Close to Throttle Body)

2. Need to Work On the Exhaust System to Connect to the Downpipe (Due to Many Exhaust Options, The Downpipe Is NOT Connected to Stock Exhaust).

3. This Kit Is For Turbo Hardware ONLY, You Will Need to Upgrade Engine's Fuel System and Tune the Engine. Needs to Upgrade Engine Internal Parts If Running Higher than 6 PSI Boost.

4. Installation Guide Is Available at CXRacing's Website.

Application:
- Chassis: 2009-2010 Ford F150 4X4
- Motor: 5.4 L V8 NA-T
- Turbo: T76, 0.81 AR Exhaust Housing

Product Being Sold:
- T76 Turbo + Headers/Manifolds + Cross Pipe/Downpipe + Wastegate + Intercooler + Pipes + Silicon Hoses + T-Clamps + BOV + Brackets + Air Filter

This is CXRacing's Newest Products for the Application Stated Above. All Parts Are Developed from Ground Up in Our R&D Center in USA, Designed and Built for Improved Performance Gains, with Excellent Fitment and Easy Installation.


Product Info and Spec:
Headers/Manifold：
- 304 Stainless Steel Headers, 1.65" Runners
- 2.5" Cross Pipe
- Bolt On Fit, No Need To Cut or Relocate Other Parts

T76 Turbo and Wastegate：
- 4" Air Inlet, 2.5" Compressed Air Outlet
- Wet Floating Bearings
- Oil Cooling
- Standard T4 Flange
- 76mm Wheel Compressor
- P Trim .81 A/R Turbine
- 3" V-band Hot Side
- 60 mm V-band 12 Psi Wastegate

Intercooler：
- Bar and Plate Design
- Core Size: 18"x12"x4"
- Overall Size: 25"x16"x4"
- 4" Thick Core, 3" Inlet & Outlet

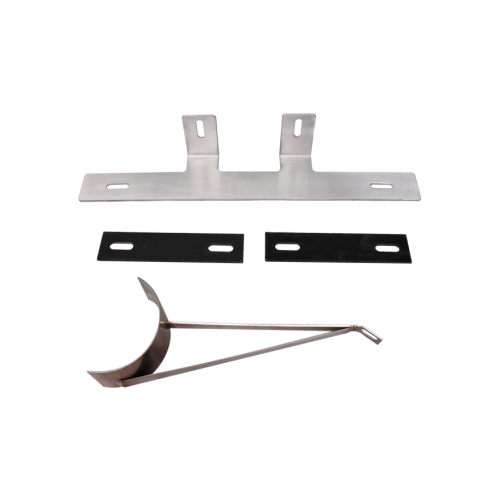

- Intercooler Comes with Aluminum Brackets

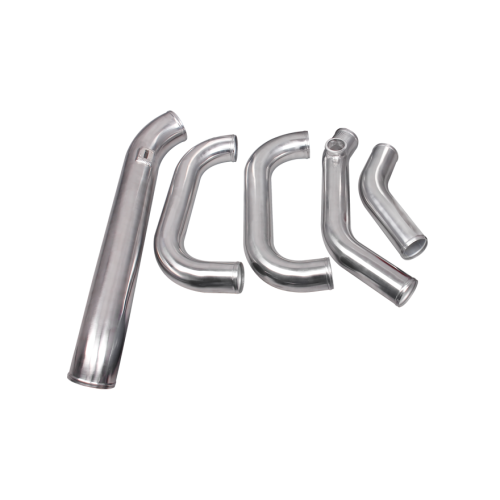

Aluminum Piping Kit:

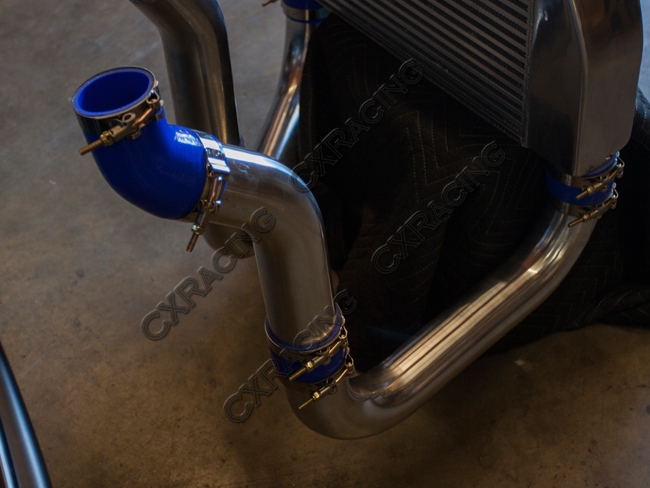

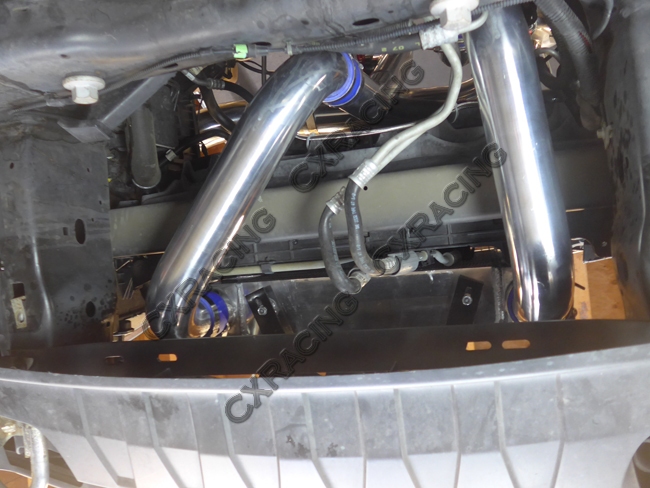

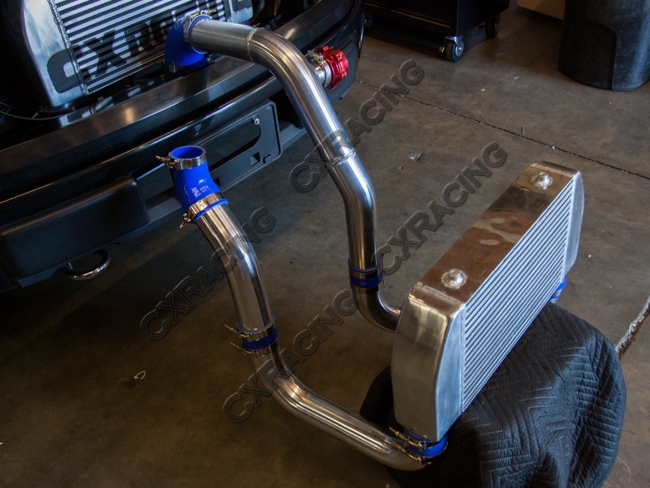

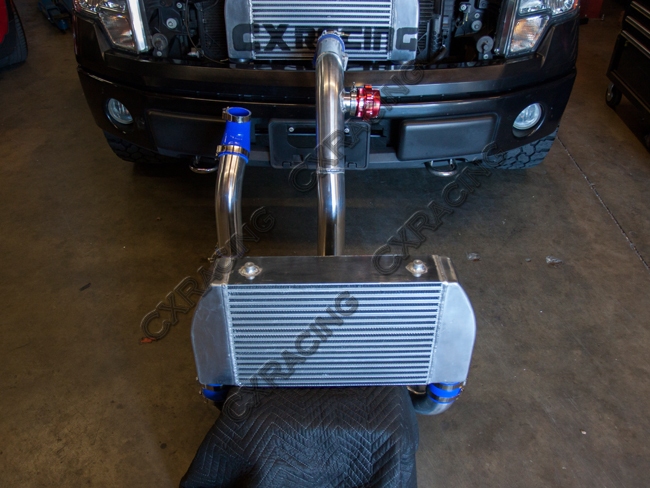

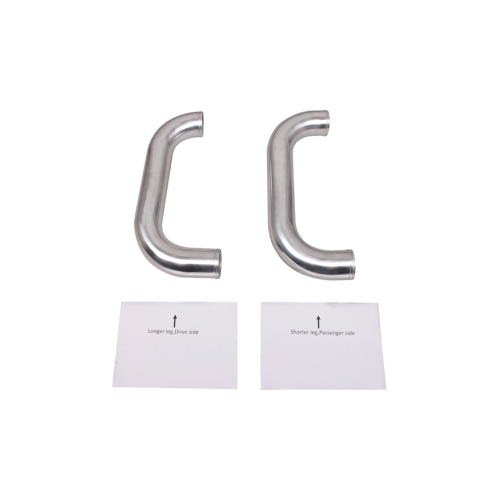

- 3" Mandrel Bent Aluminum Piping Kit
- With MAF Sensor Flange Welded
- 50mm BOV, Silicon Hoses and Clamps


Notes:
- Off Road Or Track Use ONLY, NOT For Street Use.
- Due To the Complexity of Converting a Motor From NA to Turbo, Please Make Sure You Understand the Application Stated Here is the Right Parts For Your Project.
- Parts Being Sold are the Kit Being Advertised ONLY. Other Parts Shown on Pictures are for Demo Only (of Our Complete Swap Kit). Check Our Other Website Items.

Optional One Dual Ball Bearing Turbos is Available with Extra Payment, Please Select the Ball Bearing Option When Buying.
　

Click Below Picture to See Flowbench Test of the Intercooler:　

　

Highlights:
- Especially Designed, Made for the Application Stated
- Fully Tested, Simple Easy Installation
- Offers Excellent Performance Gains
- One Of The Best Kits On The Market, With High Quality Products And Affordable Pricing

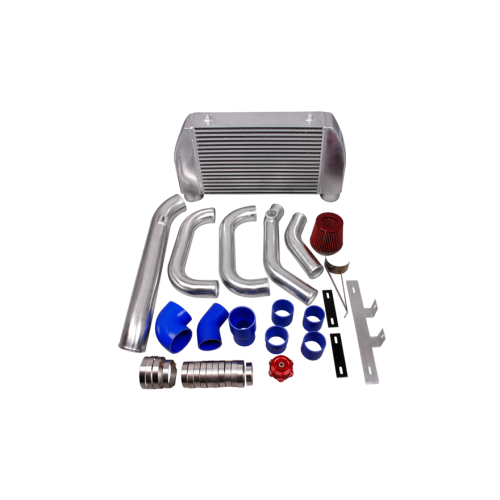

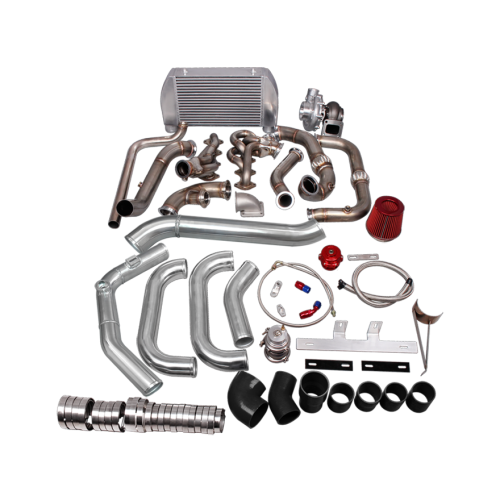

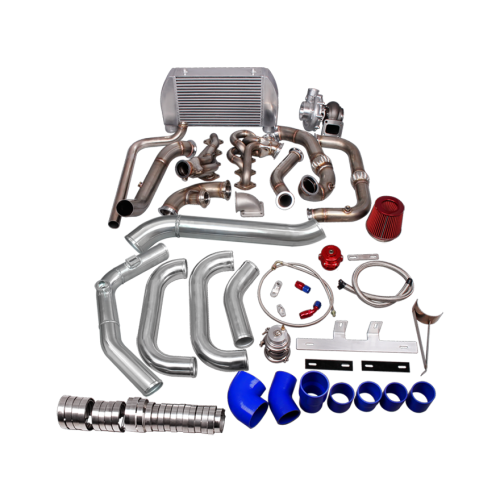

Items_Included:
- T76 Turbo, with Oil Line Kit
- Header Kit
- Wastegate
- Vband Clamps
- Intercooler with Brackets
- Aluminum Pipes
- Silicon Hoses and Stainless Steel T-Clamps
- Air Filter
- BOV　

Remove Passenger Side Wheel for Easy Access/Installation:
