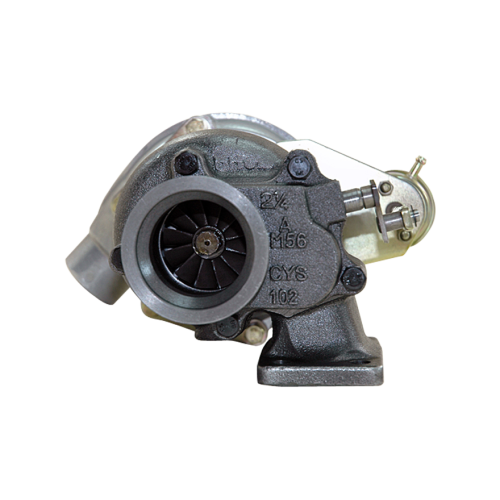

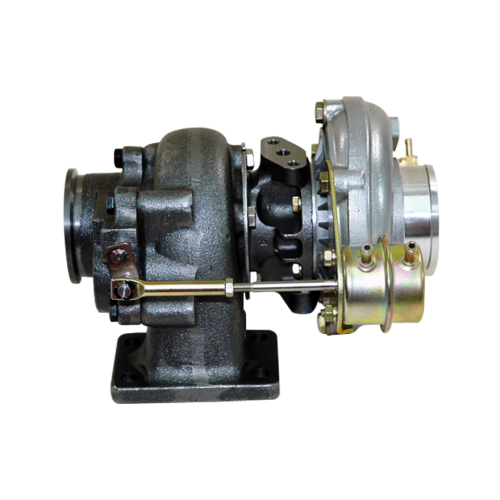

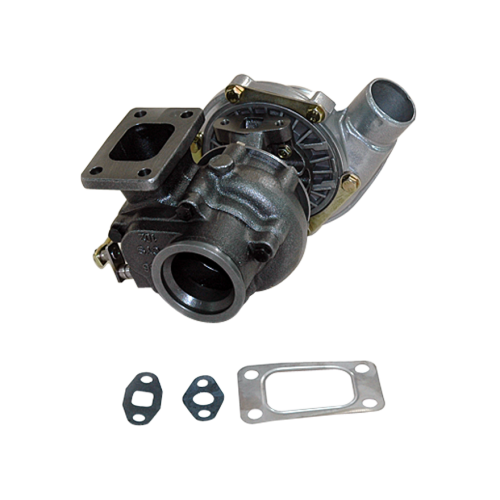

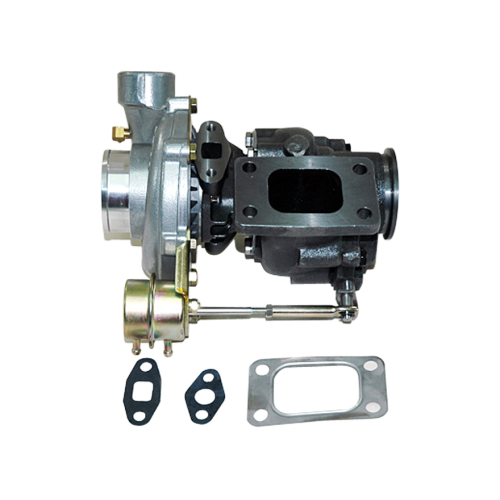

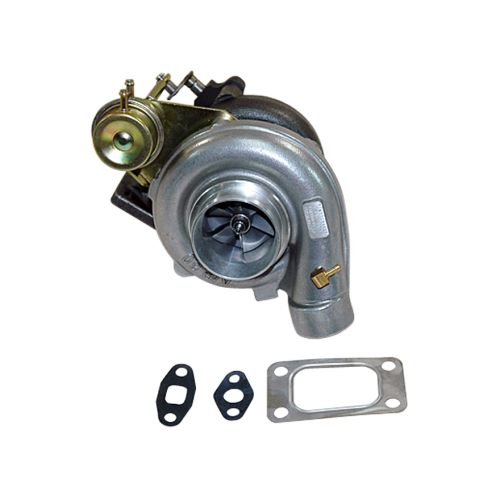

Internal Wastegate V-Band TurboCharger. T3/T4, 8PSI, .63 Trim, .60 A/R. 2.5" V-Band Outlet. Standard T3 Flange.

Item(s) Specification:
- T3 Flange to Manifold
- 2.5" V-Band Hot Side Downpipe Flange
- .60 A/R Compressor
- .63 A/R Turbine
- 2.75" Inlet & 2" Outlet
- 1/8 NPT Oil Inlet
- 350 WHP Swaps
- 5~20 PSI Working Pressure
- 8 PSI Internal Wastegate

Highlights:
- High Quality Built Product. Each Turbo is Individually Tested and Computer Balanced.
- BRAND NEW, Not Used, Not Remanufactured.

Item(s) Included: 1x T3 Turbocharger

Optional Turbo Oil Feeding Line Kit Braided for T3 T4 T04E T04B
- Our Oil Feeding Flange has Restriction build in, Supplies proper Oil feeding to the turbo. Be Aware that other oil kit may just have a big hole and can blow Exhaust Sealing Easily.

Optional T3 Turbo Manifold Flange

Optional Turbo Oil Return Line Kit AN10
- Two AN-10 Aluminum Fitting (One Straight, one 45deg)
- One AN-10 Weld on Steel Fitting (weld to oil pan)
- One 24 inch long Braid Oil Line

Optional Turbo Oil Drain Flange
- Billet Aluminum CNC Made, High Quality
- Push In OD 5/8", Fits 5/8" ID hose.

Optional 4AN Oil Feed Flange Adaptor
- Built in oil restrictor to Protect your turbo from high pressured oil feed
- Two Mounting Screw holes Centerline to Centerline is 1.5"

Optional 2.5" V-Band Clamp + Flange


Write a review

Please login or register to review

T3 Turbo Charger Internal Wastegate 8PSI , 2.5" V-Band Exhaust, 2.75" Inlet & 2" Outlet

  • Brand: CXRacing
  • Product Code: TRB-T3T4-V
  • Availability: In Stock

  • $280.00

Available Options


0 reviews / Write a review

Tags: Internal Wastegate V-Band TurboCharger. T3/T4, 8PSI, .63 Trim, .60 A/R. 2.5" V-Band Outlet. Standard T3 Flange. Item(s) Specification: - T3 Flange to Manifold - 2.5" V-Band Hot Side Downpipe Flange - .60 A/R Compressor - .63 A/R Turbine - 2.75" Inlet & 2" Outlet - 1/8 NPT Oil Inlet - 350 WHP Swaps - 5~20 PSI Working Pressure - 8 PSI Internal Wastegate Highlights: - High Quality Built Product. Each Turbo is Individually Tested and Computer Balanced. - BRAND NEW, Not Used, Not Remanufactured. Item(s) Included: 1x T3 Turbocharger
